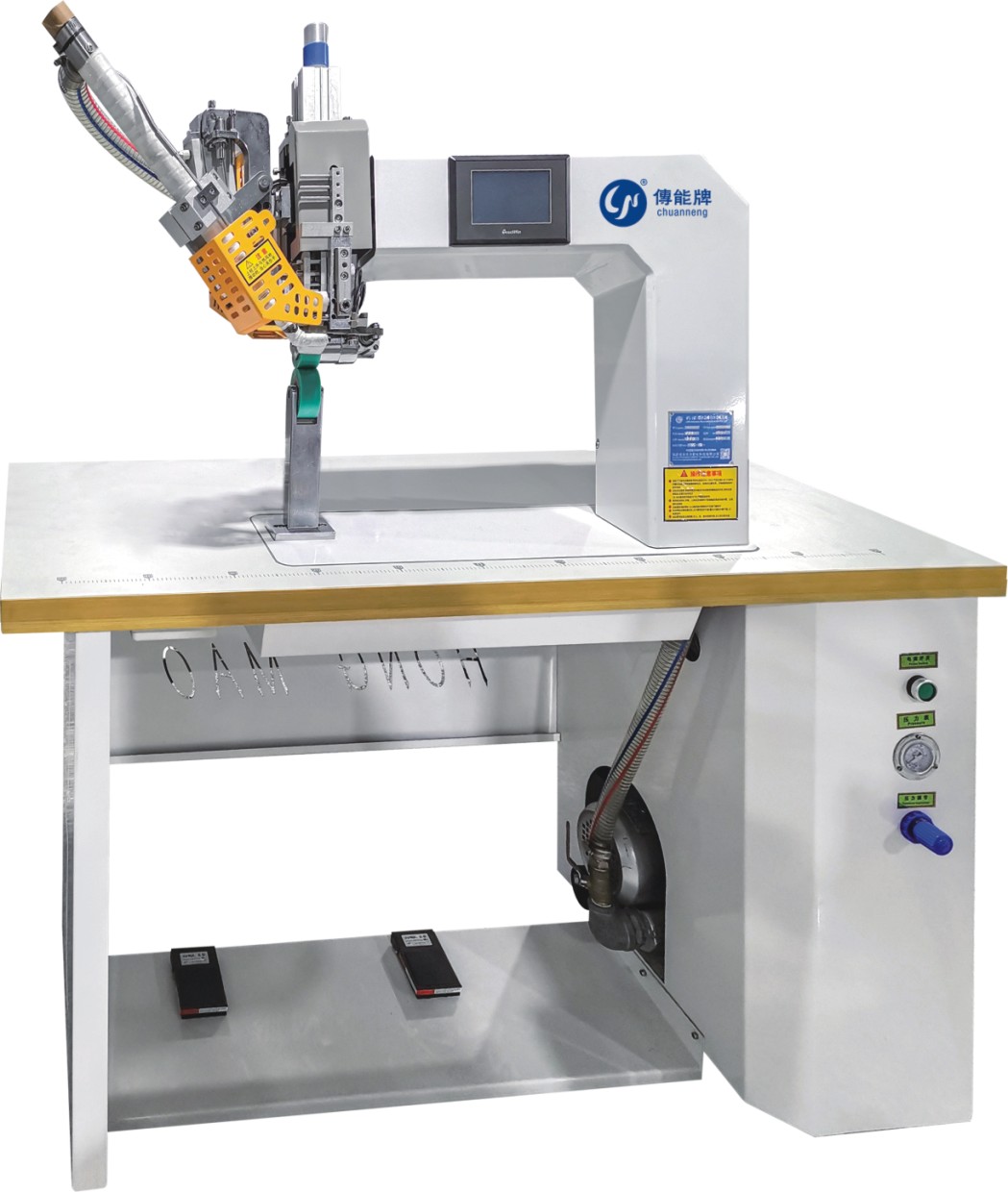

CN-850S
Basic information
It is used for the heat gun to melt the rubber surface of thewaterproof rubber strip, and at the same time, the rubber strip isclosely attached to the needle eye of the waterproof material by therotation and pressure of the upper and lower rollers, so that thewaterproof membrane is fused together to achieve the waterproofeffect.
National Hotline

+86-595-8562 7700

Online consultation
Product details
DESCRIPTION

EQUIPMENT CHARACTERISTICS

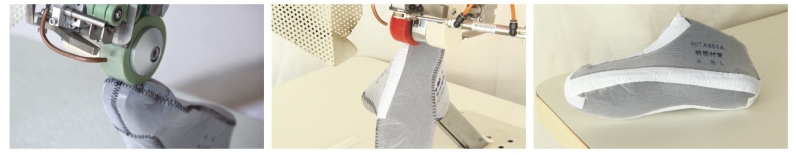

It is used for the heat gun to melt the rubber surface of thewaterproof rubber strip, and at the same time, the rubber strip isclosely attached to the needle eye of the waterproof material by therotation and pressure of the upper and lower rollers, so that thewaterproof membrane is fused together to achieve the waterproofeffect.

Air pressure gun half open classic pendulum method, solid durable.Up and down roller differential speed, is suitable for the smoothaminating high elastic fabrics.

Half the output pressure electric heating tube, greatly prolonging theservice life of the heating pipe at the same time, greatly reduce theoperation cost and maintenance cost of the factory.Outside heat pipe using vortex structure inside and outside, reducethe loss of the air volume, heat, and reduce the risk of burns to humanbody.

Air pressure gun gun body combined with simple before the wind, flatmouth, hole swap is convenient.

  • GW

    130kg

  • Machine size

    1270x630x1660mm

  • Beehive specifications

    20-25cm

  • Up/Down wheel width

    25mm (customizable)

  • Power

    1.8kw

  • Air pressure

    5kg/cm²

  • Welding speed

    3-23m/min (adjustable)

  • Max fusing temperature

    800°C
