BMS-326G-3D
Basic information
Suitable for sewing curved surfaces such as shoe uppers, shoe back covers andshoe back uppers.
Automatic thread-break-alarm,break-needle-proofcover and other sweethuman-based design.
National Hotline

+86-595-8562 7700

Online consultation
product details
DESCRIPTION

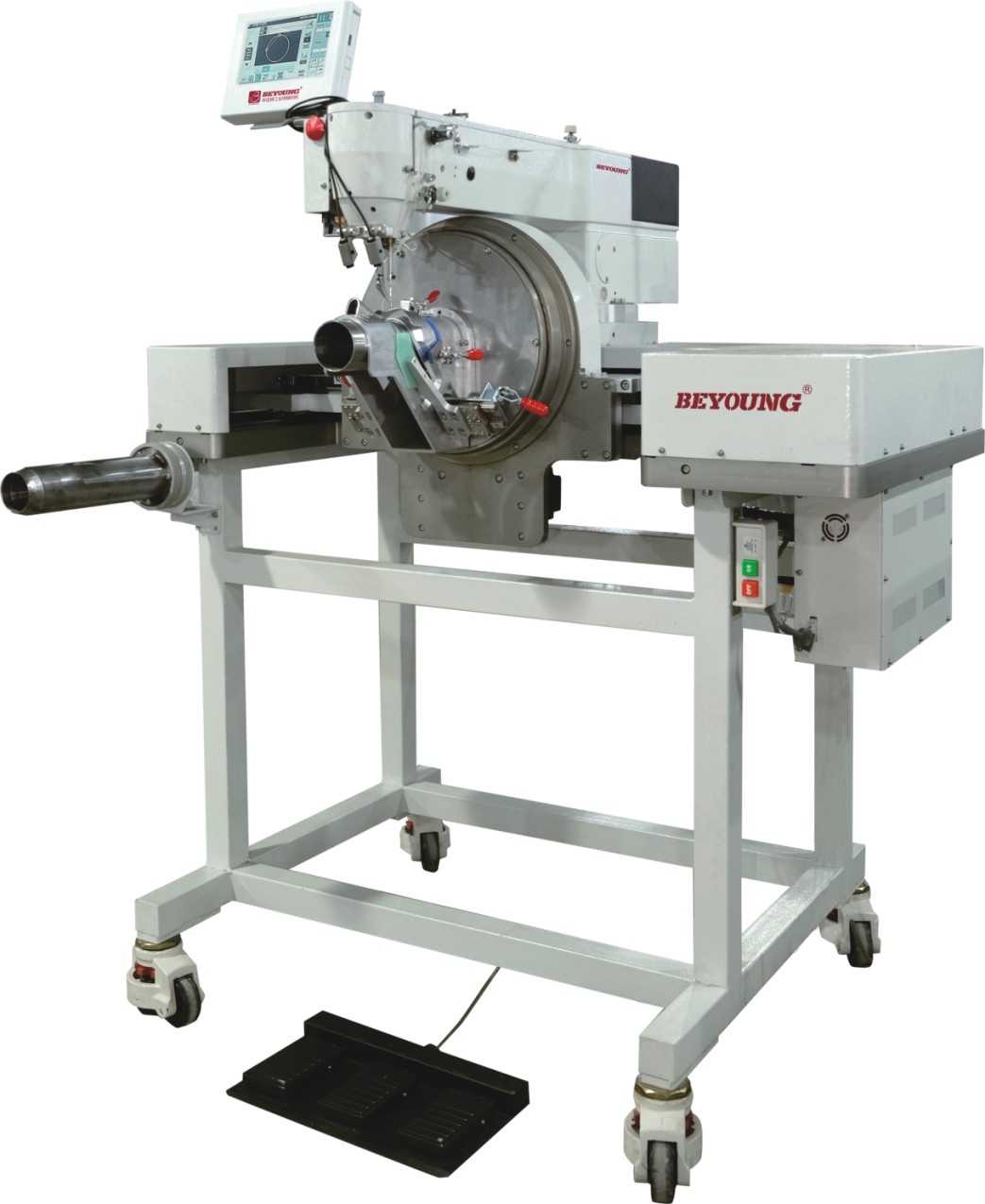

BMS-326G-3D

Direct Drive Programming Cylindrical

3D Computer Pattern Machine

FEATURES

Suitable for sewing curved surfaces such as shoe uppers, shoe back covers andshoe back uppers.

Automatic thread-break-alarm,break-needle-proofcover and other sweethuman-based design.

7.5 inch lCD touch operation panel, easy to operate and to do the patterndesign on the machine.

surface sewing achieved through X, Y, and Z axis differential.

  • Working Area

    170x220mm

  • Sewing Speed

    2300rpm

  • Stitch

    0.05-12mm

  • Max Stitches

    20,000stitches/pattern

  • Outer Pressure Foot

    Pneumatic type

  • Medium Presser Height

    15mm

  • Motor

    Limi-Servo Motor 750V

  • Applicable Neede

    DPx17,DPx5

  • Air pressure

    0.5Mpa 1.8L/min

  • Stored programs

    999 graphics

  • Operation Type

    75 inch touch screen

  • Supply voltage

    220V

  • Size

    1200x1050x1370mm

  • Weight

    190KG
